South Fence Fixed Knot Logo Fixed Knot Machine

The South Fence Machinery Ltd Fixed Knot Machines have been developed from the Company’s extensive experience of more than 85 years in the manufacture of wire products and machinery specifically designed and produced for the manufacture of rural wire fence products.

It is the vast experience gained over the years that has enabled South Fence Machinery Ltd to identify and design features to facilitate the most economic and efficient manufacture of wire fence products.

The same dedication and exacting standards that placed South Fence Machinery Ltd at the forefront in Hinge Joint machinery has now done the same for Fixed Knot machinery.

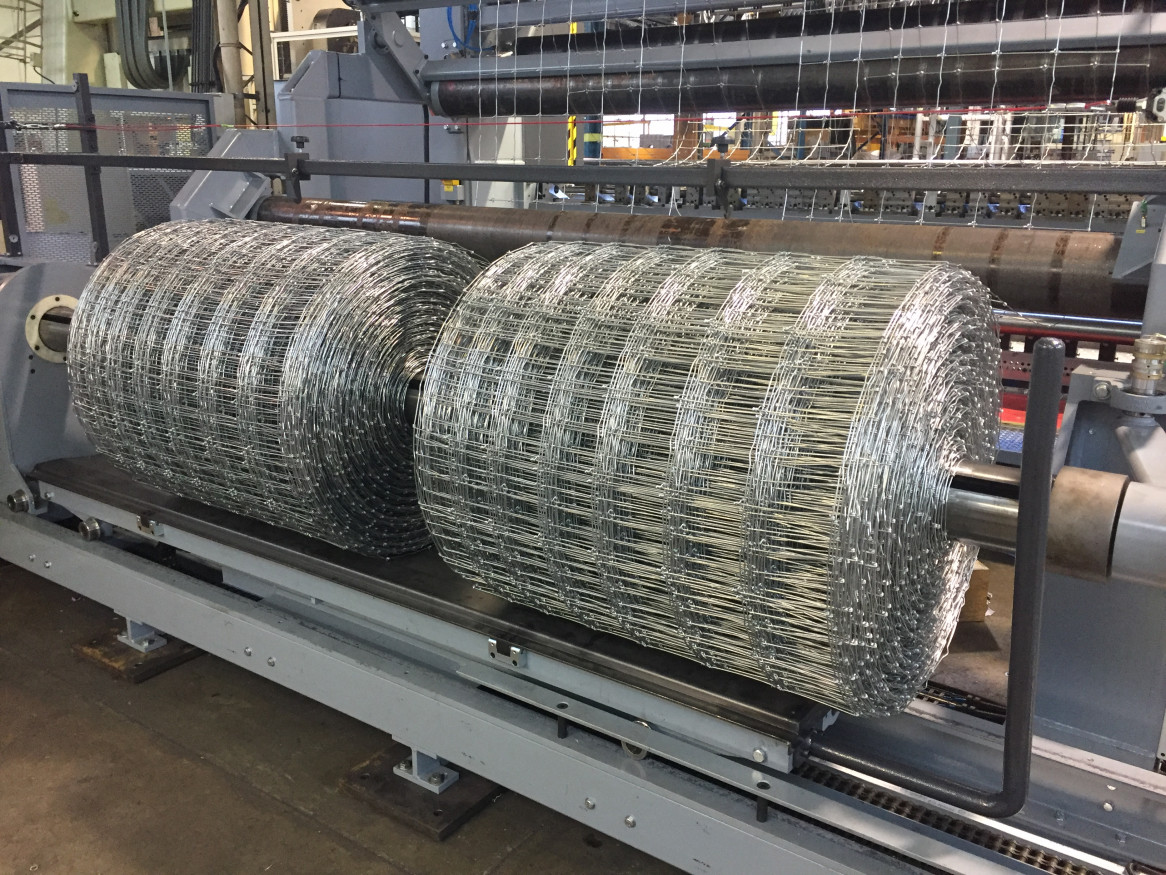

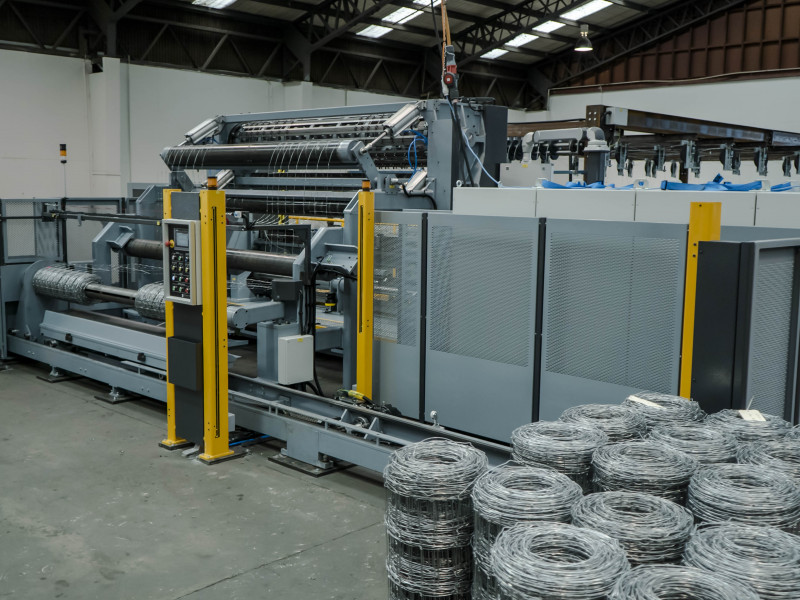

The Fixed Knot Machine is capable of manufacturing two rolls at a time and can operate at speeds of 40 stays per minute reliably due to the machines stay-wire management system and effective wire trips systems.

The safety systems and safety equipment that are integrated into the latest Fixed Knot Machine are extensive, the machine is now protected by Siemens light curtains and monitored guard interlock sensors with the added protection of motor position monitoring via the Siemens safety PLC giving the very best safety protection available, backed by South Fence Machinery’s comprehensive warranty this machine is favored by machine operators and business owners worldwide.

South Fence Fixed Knot Machines have been designed to ensure long economic life with ease of maintenance and operation.

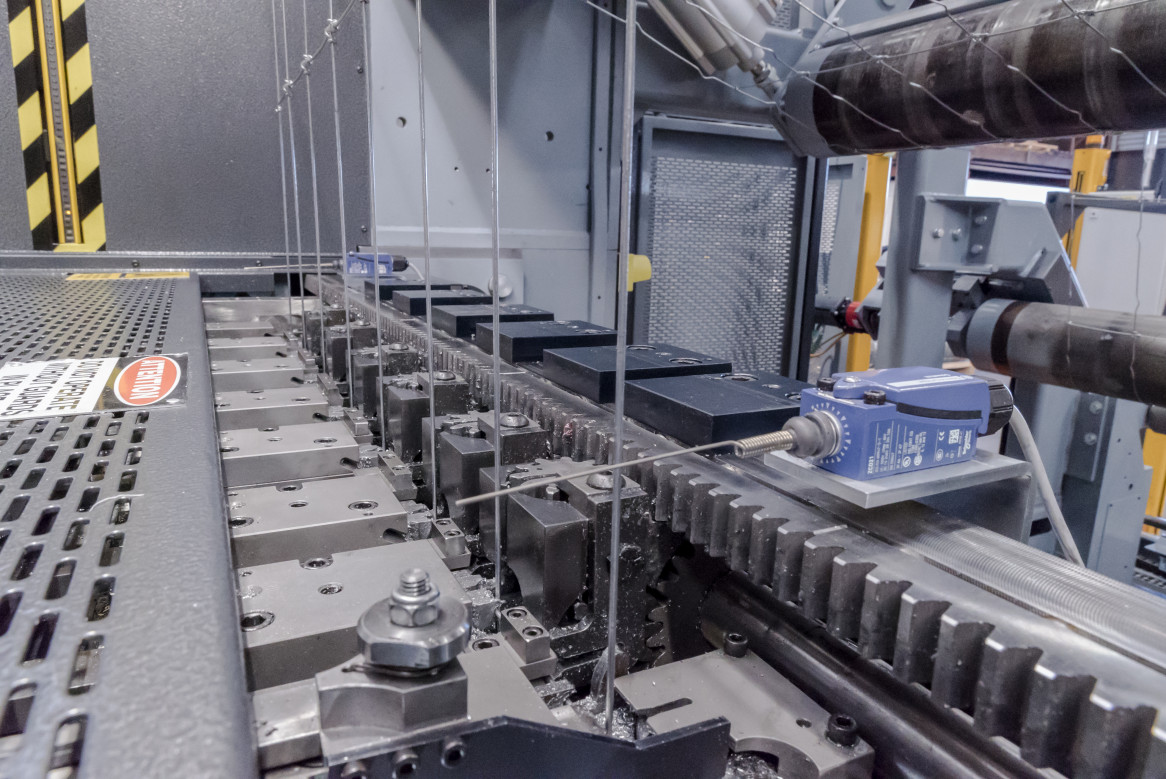

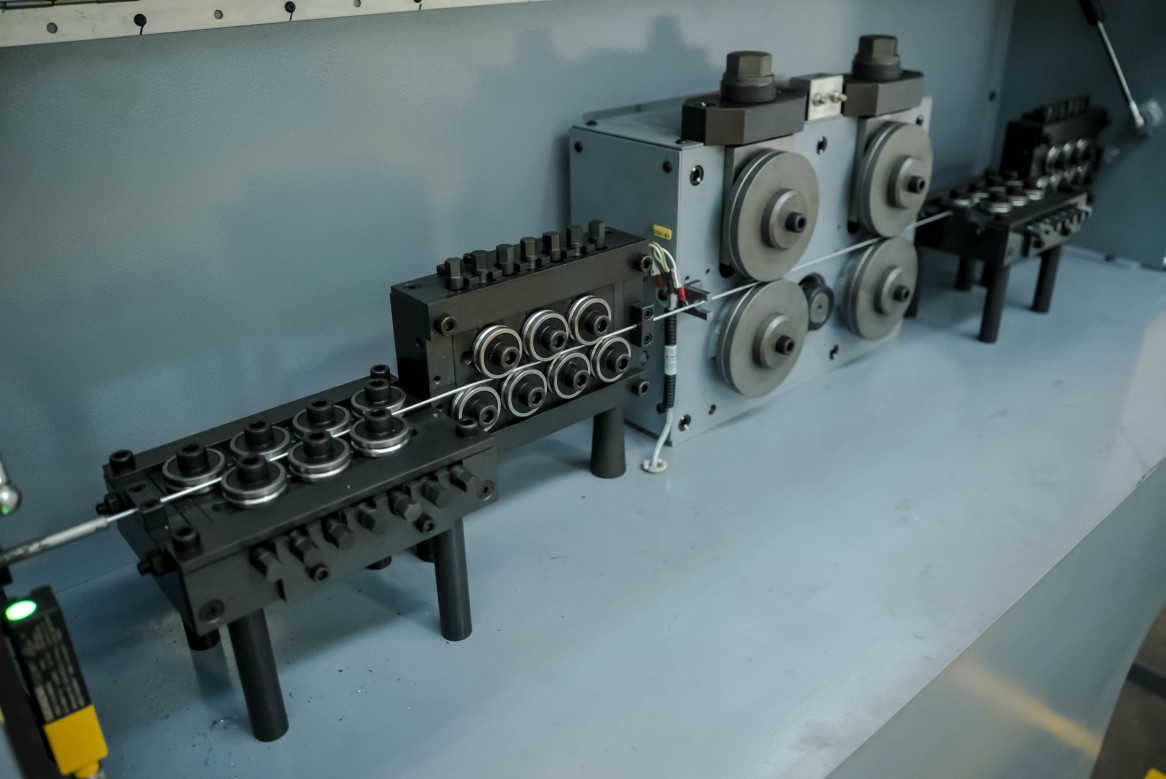

The direct stay wire feed system gives versatility of fence specifications and clear uninterrupted operator vision of the knotting boxes. Line wires can be added or dropped off at the top or bottom of the fence to overcome the necessity of shifting the knotting boxes.

The indexing crimping drum allows changes of stay wire spacing to be implemented by a simple keypad operation with no other mechanical adjustments necessary.

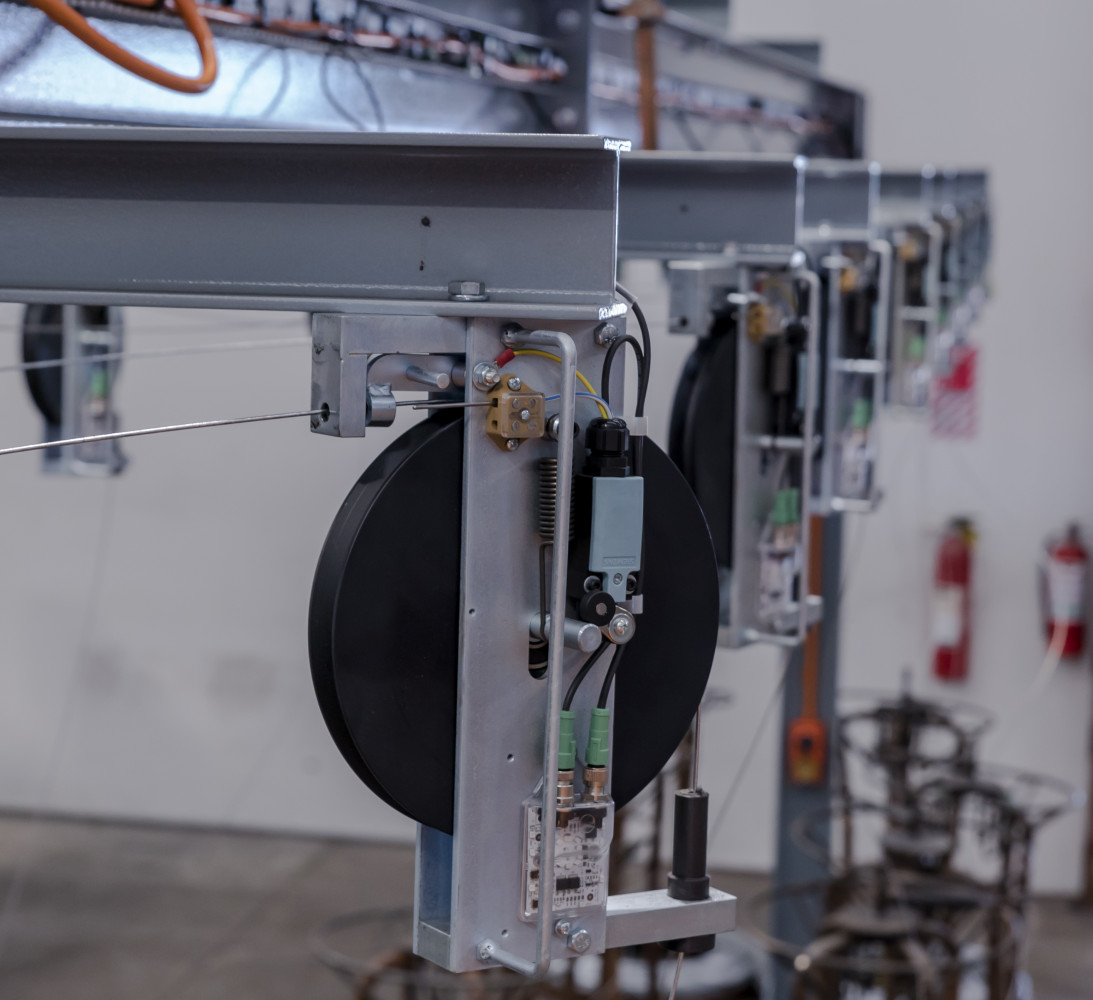

The machine has a comprehensive arrangement of electric trip systems to ensure the machine stops in the event of wire tangle or breakage or incorrect machine function. The take-up mechanism incorporates an electrically driven stripper for the easy removal of the finished roll.

The Fixed Knot Machine has a full complement of safety systems and a full and comprehensive risk assessment is conducted on all South Fence machines.

Safety features include:

  • Integrated Siemens electrical system ensuring safety systems and machine functions are simultaneously monitored
  • Category 4 monitored Light Curtains on both front and rear of the machine
  • Category 4 monitored RFID Interlock switches on all removable guards and doors
  • Category 3 scanners to detect workers operating in hazardous zones
  • Siemens safety PLC to monitor all safety related control features
  • 2mm punch panel guard system, finished in durable powder coat
  • Festo pneumatic safety valves and safety regulators
  • Comprehensive machine warning signage

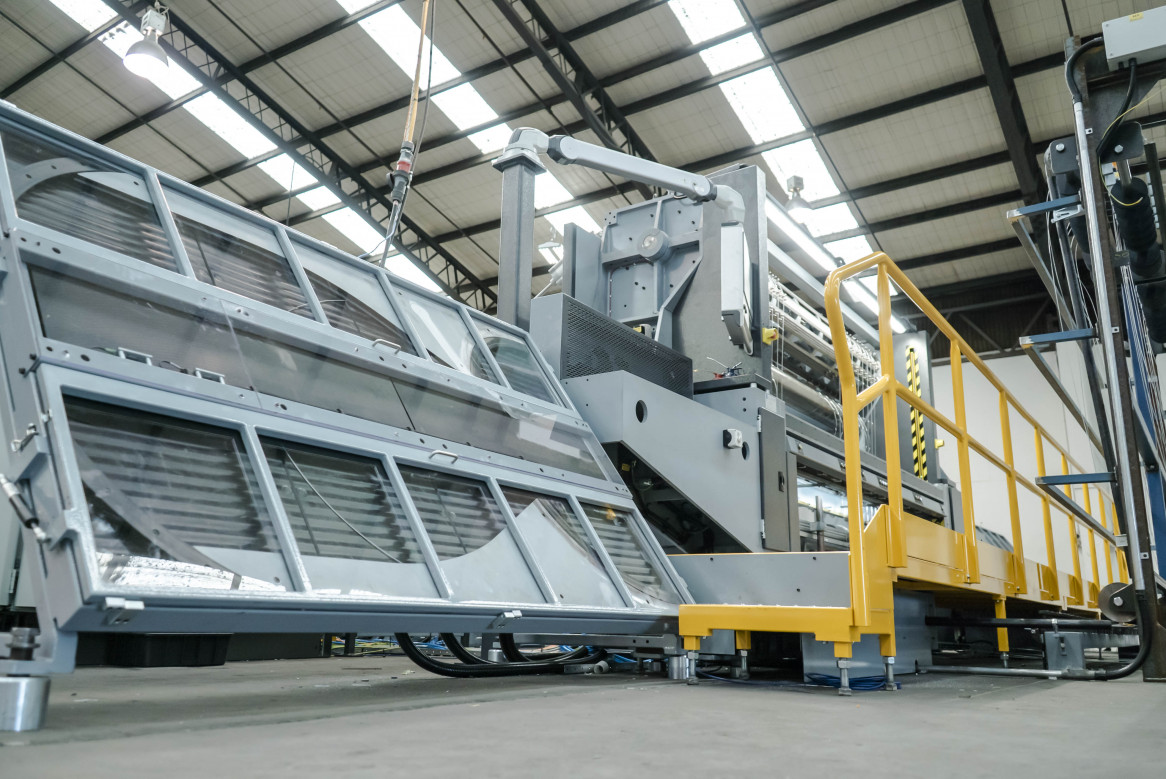

  • Non-slip operator platforms, with hand rails and kick boards

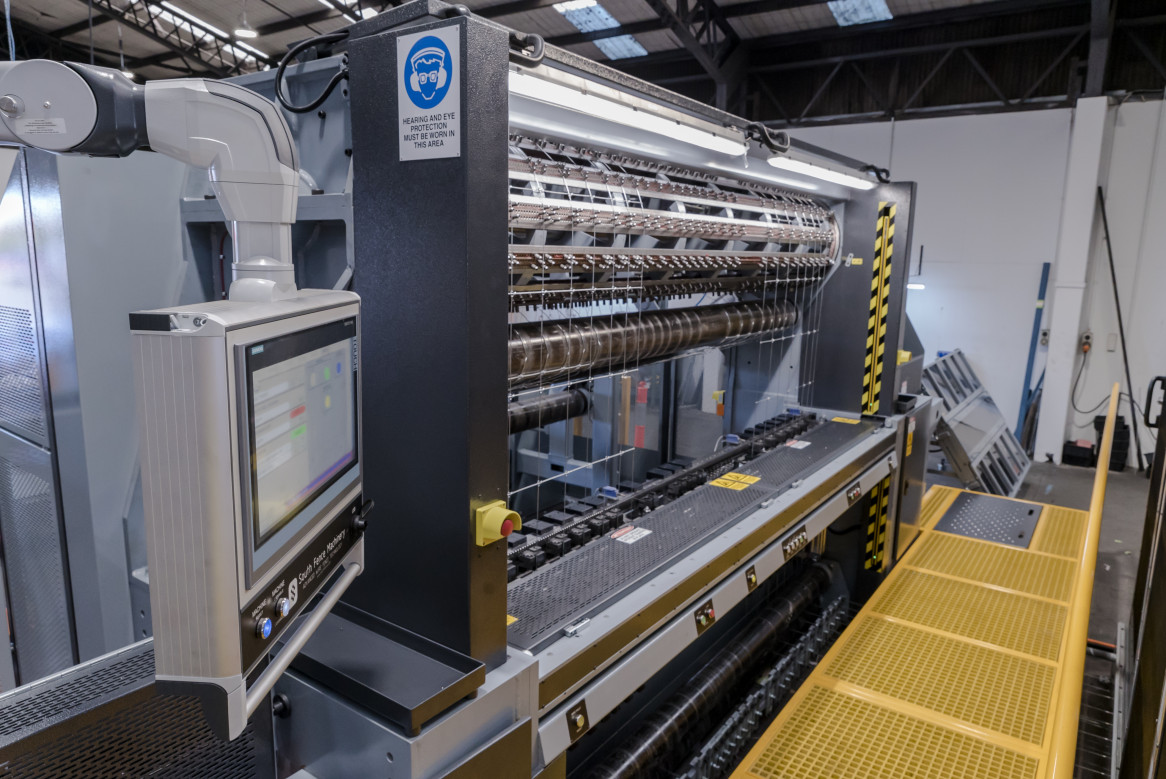

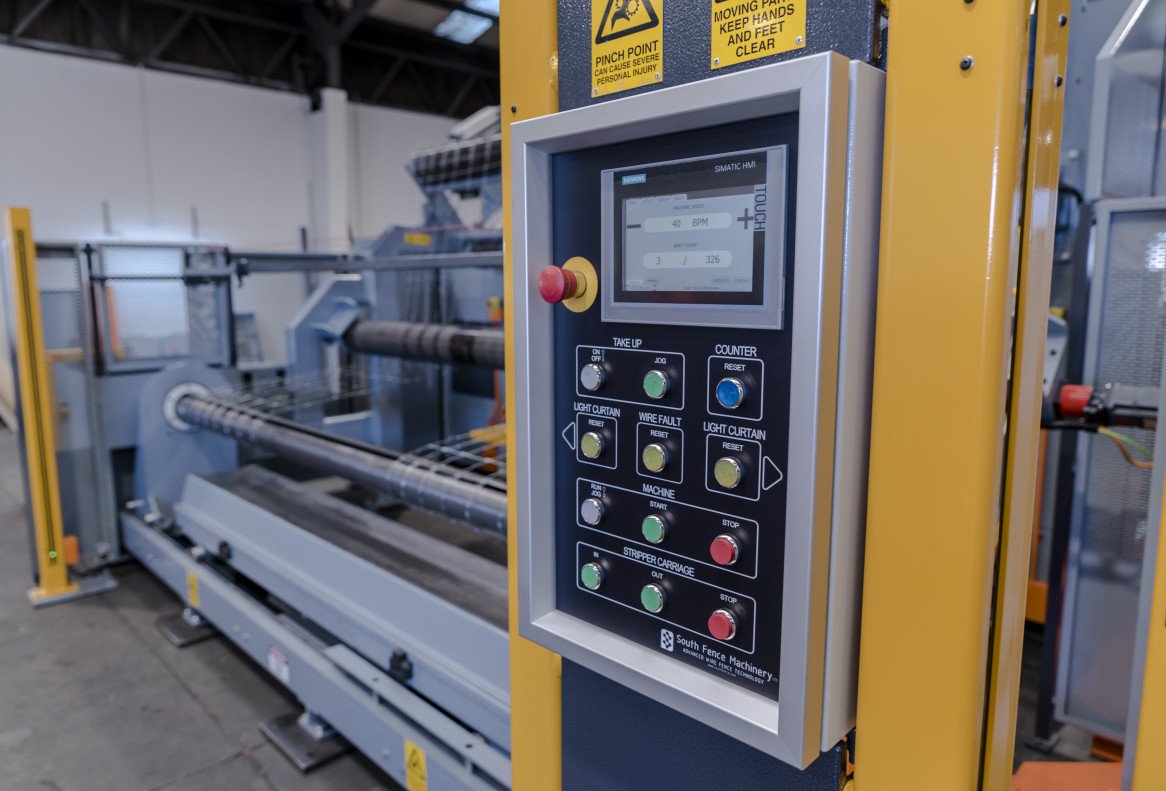

  • HMI operator fault banner system
  • Safe speed monitoring for all axes for machine set-up and fault finding
  • Acoustic insulation on machine guards to reduce machine noise
  Model FKM 30-3D
Maximum Fence Height 3.0 meters (120")
Maximum Number of Horizontal Wires 26 Line for a single fence
28 Line for a dual fence
Horizontal Wire Spacing Minimum 3" (75mm) with 1/2" (13mm) increases
Vertical Wire Spacing 3", 6", 9", 12", 18", 24", 48"
(75mm, 150mm, 225mm, 300mm, 450mm, 600mm, 1200mm)
Horizontal Wire Size 2.50mm (0.098")
Vertical Wire Size 2.50mm (0.098")
Knot Wire Size 2.24mm (0.088")
Maximum Machine Speed Up to 40 cycles per minute
Maximum Roll Length 500m (1640ft)
Maximum Roll Diameter 800mm (31.5")
Motion System Controlled Siemens Servo Drives
Dual Feed System To enable 2 rolls to be manufactured together (2.8 meters (110") usable width)
Safety Equipment Utilised Fixed guards, CAT4 RFID removable guards, CAT4 light curtains, CAT3 scanners

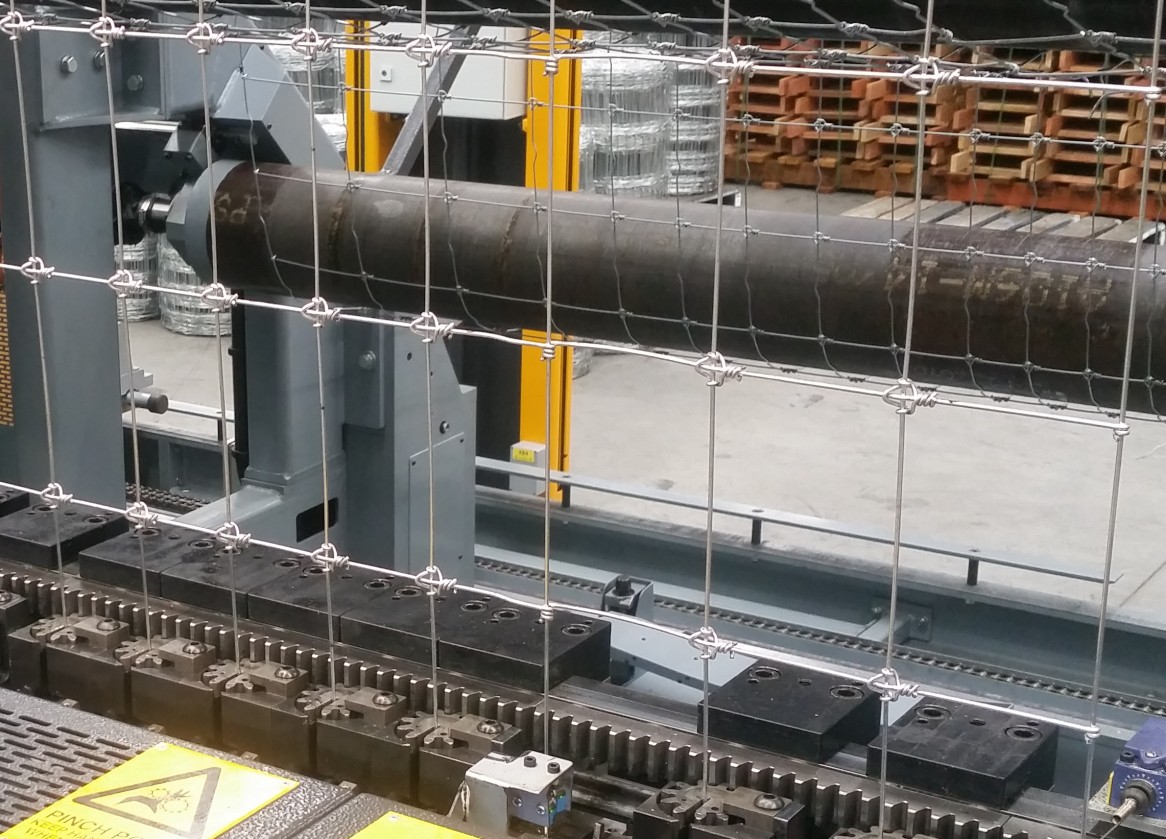

Centre Twist Compatible? Yes, available on request
Automatic Lubrication System Vogel automatic machine lubrication, more lubrication options available on request
Approximate Floor Area Required 22m x 13m (72ft x 43ft)

Some variation to the above specifications is available on request. All weights and measures are approximate.
